Features:

· Suitable for analog and digital terrestrial TV tuner
· Full ESD protection
Mixer/Oscillator
· High impedance mixer input for LOW/MID band
· Low impedance mixer input for HIGH band
· 4 pin oscillator for LOW/MID band
· 4 pin oscillator for HIGH band
IF-Amplifier
· balanced SAW preamplifier
· Low output impedance
PLL
· PLL with short lock-in time
· High voltage VCO tuning output
· Fast I2C bus
· 3 NPN bandswitch buffers
· Internal LOW-MID/HIGH switch
· Lock-in flag
· Power-down reset



Application

The IC is suitable for PAL tuner in TV- and VCR-sets or set-top receivers for analog TV and Digital Video Broadcasting.


Pinout

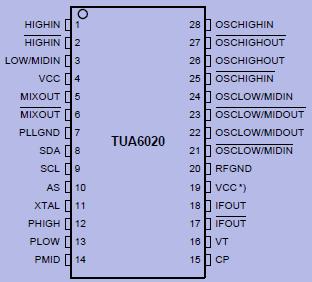

  Connection Diagram


Specifications

Parameter 1). Symbol
Limit Values
Unit Remarks
min
max
Supply voltage VCC
-0.3
6
V
Junction temperature TJ
+150
Storage temperature TStg
-40
+125
Thermal resistance
(junction to ambient)
RthJA
120
K/W
PLL
CP VCP
-0.3
3
V
ICP
1
mA
Crystal oscillator pin XTAL VXTAL
VCC
V
IXTAL
-5
mA
Bus input/output SDA VSDA
-0.3
VCC
V
Bus output current SDA ISDA(L)
5
mA open collector
Bus input SCL VSCL
-0.3
VCC
V
Chip address switch AS VAS
-0.3
VCC
V
Tuning voltage output (loop filter) VT
-0.3
35
V
Port outputs PLOW, PMID, PHIGH VP
-0.3
VCC
V
IP(L)
-1
25
mA tmax = 0.1 sec.
at 5.5 V
Total port output current IP(L)
40
mA tmax = 0.1 sec.
at 5.5 V
Mixer inputs LOW/MID Vi
-0.3
3
V
Mixer inputs HIGH Vi
2
V
Ii
-5
6
mA
Oscillator base voltage VB
-0.3
3
V
Oscillator collector voltage VC
VCC
V
all pins VESD
2
kV
1). All values are referred to ground (pin), unless stated otherwise.Currents with a positive sign flow into the pin and currents with a negative sign flow out of pin.
2). According to MIL STD 883D, method 3015.7 and EOS/ESD assn. standardS5.1 - 1993



Description

The TUA6020 device combines a digitally programmable phase locked loop (PLL), with a mixer-oscillator block including two balanced mixers and oscillators for use in TV and VCR tuners.

The PLL block with four selectable chip addresses forms a digitally programmable phase locked loop. With a 4 MHz quartz crystal, the PLL permits precise setting of the frequency of the tuner oscillator up to 1024 MHz in increments of 31.25, 50, 62.5 or 166.7 kHz. The tuning process is controlled by a microprocessor via an I2C bus. The device has three output ports. A flag is set when the loop is locked. It can be read by the processor via the I2C bus.

The mixer-oscillator block includes two balanced mixers (one mixer with highimpedance input and one mixer with a balanced low-impedance input), two frequency and amplitude-stable balanced oscillators for LOW/MID and HIGH, an
IF amplifier, a low-noise reference voltage source, and a band switch.
